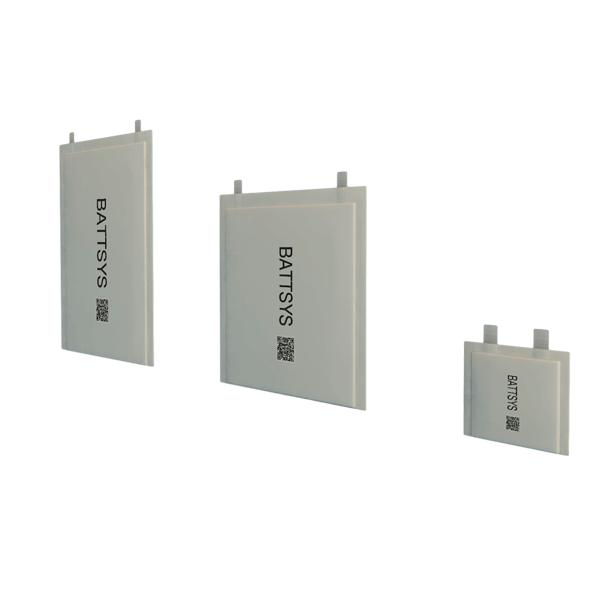

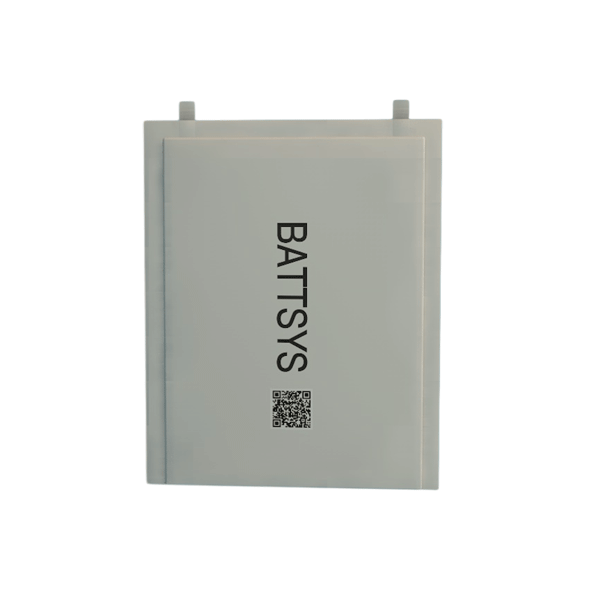

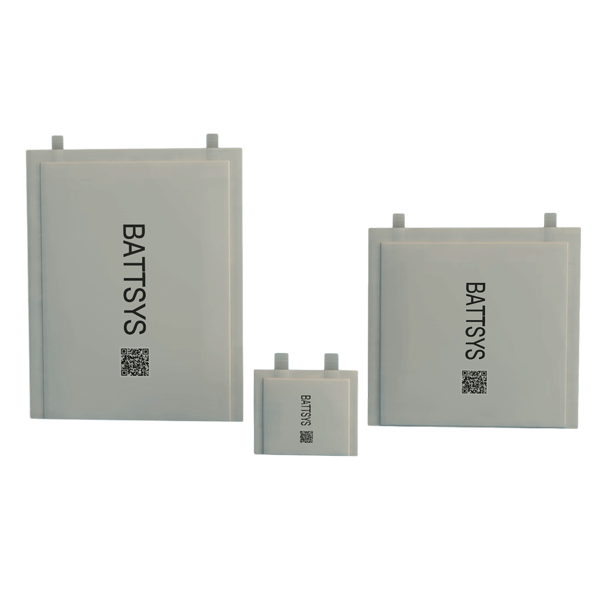

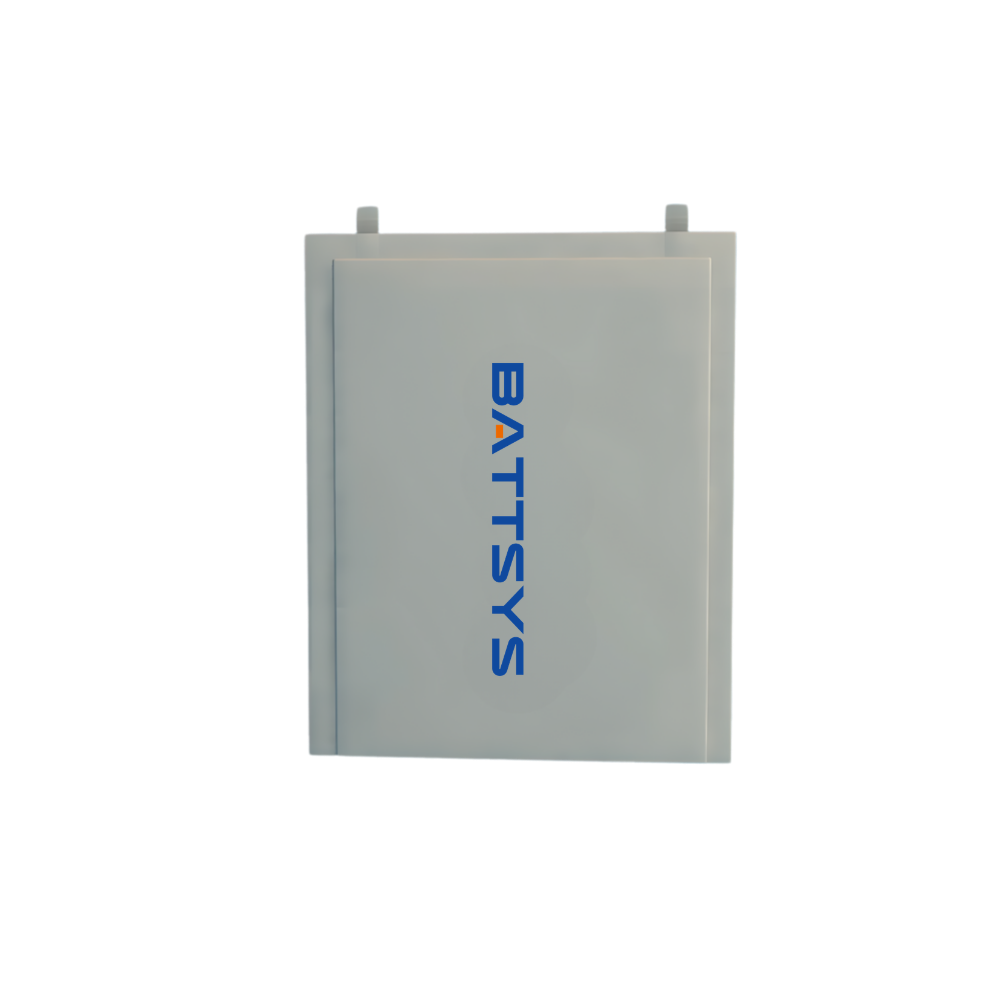

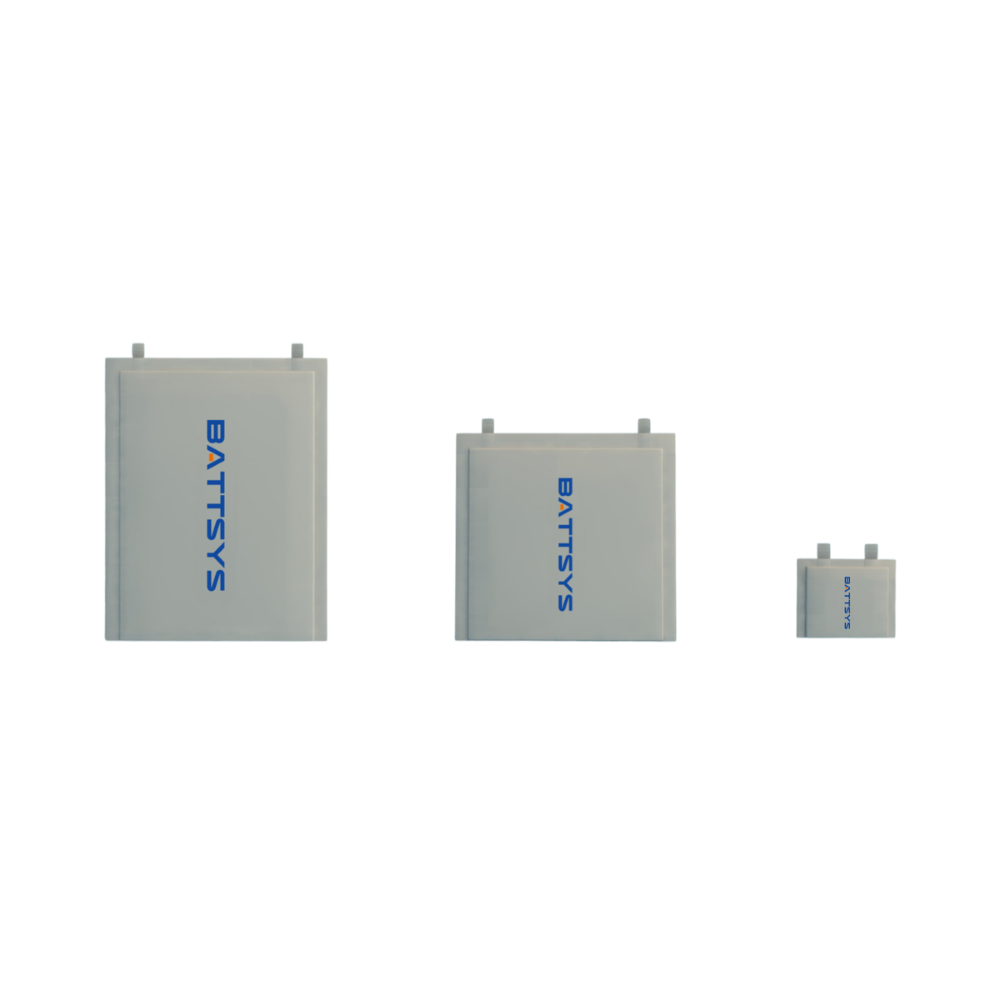

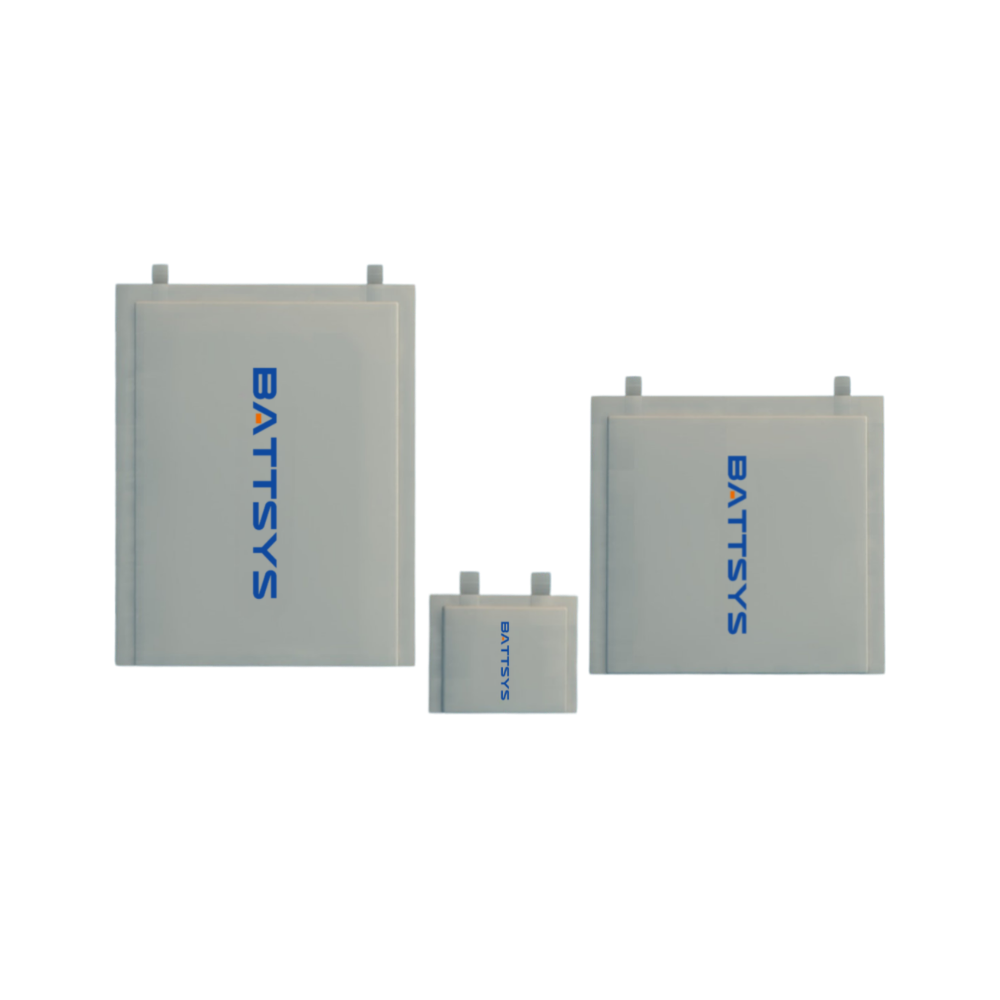

Pouch Ultra-thin Cell

Pouch Ultra-thin Cell

High energy density.

Long cycle.

Can meet the high temperature packaging of 100℃ (30S),

Good discharge performance at low temperatures from -20℃ to 0℃.

Can use ACF conductive adhesive packaging or soldering process.

Certification
Features
As thin as paper, the thinnest can be 0.4mm

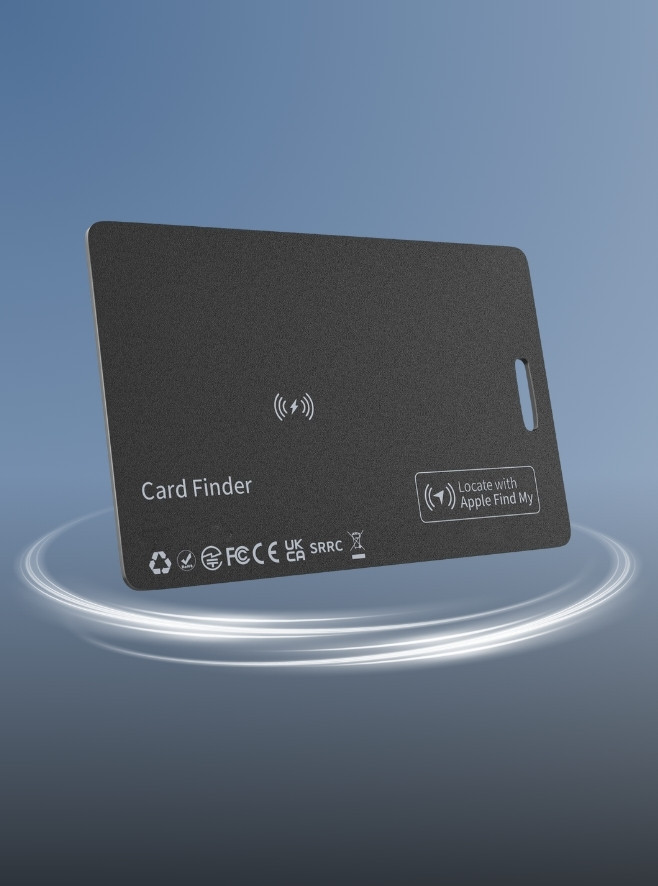

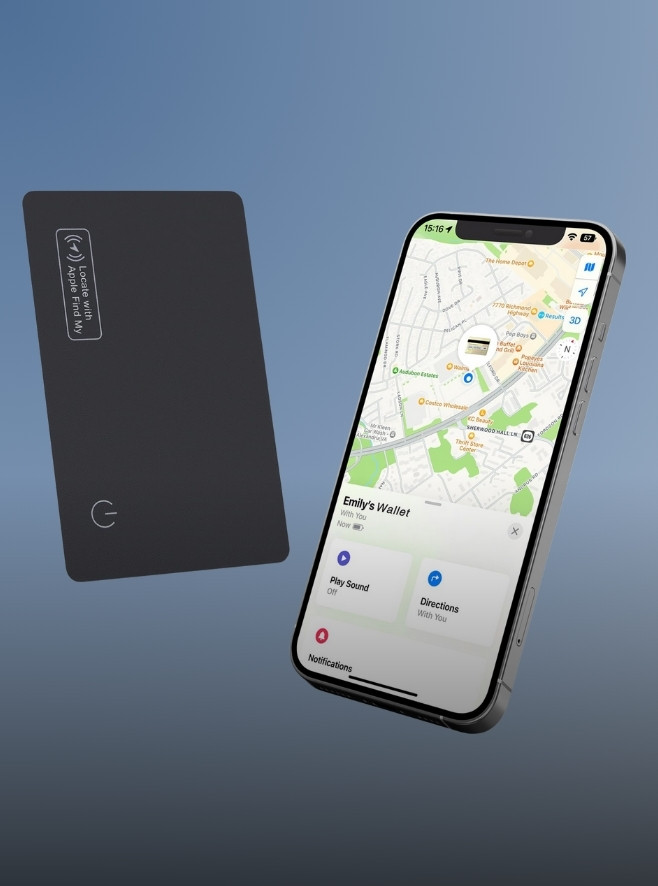

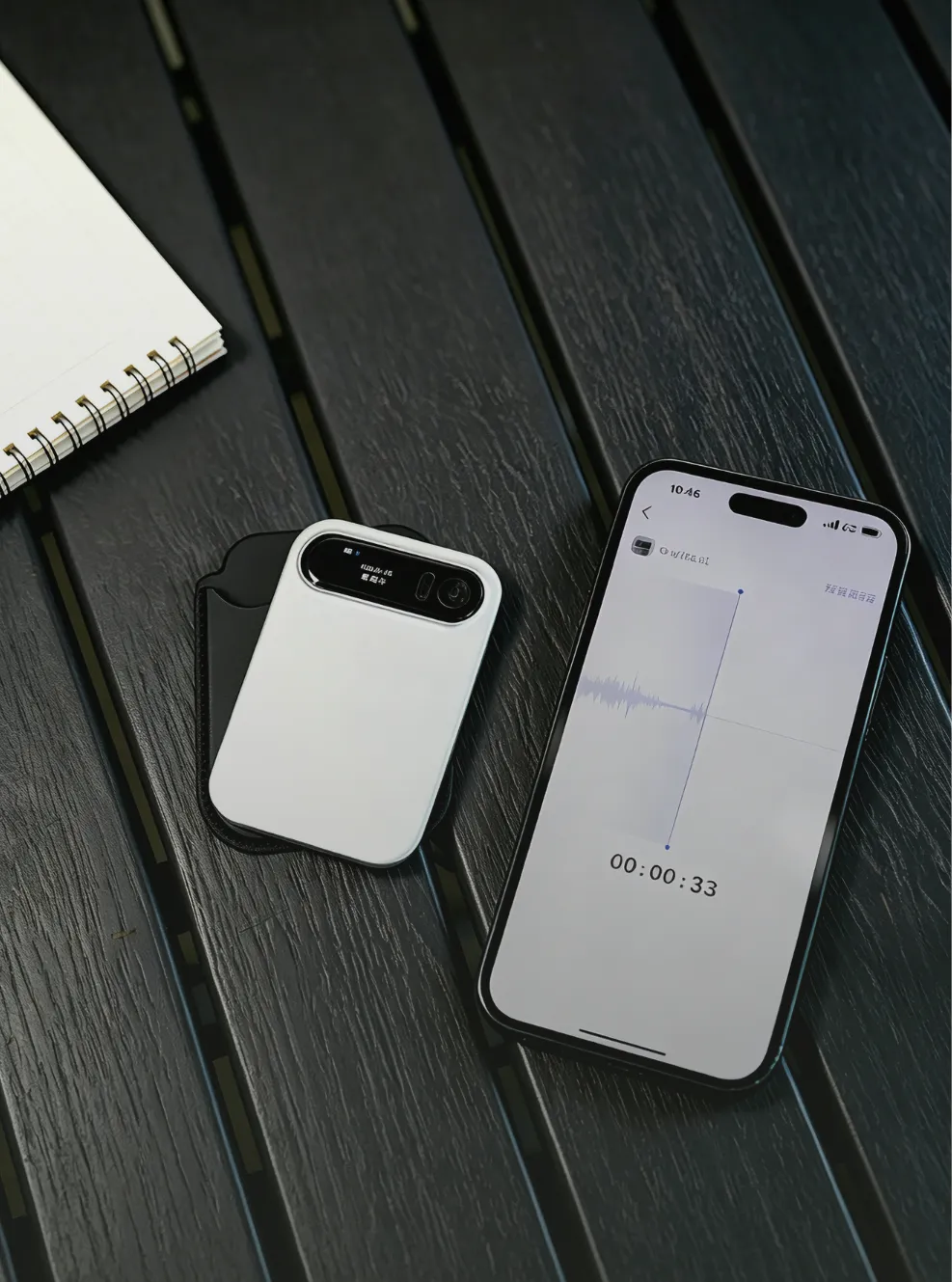

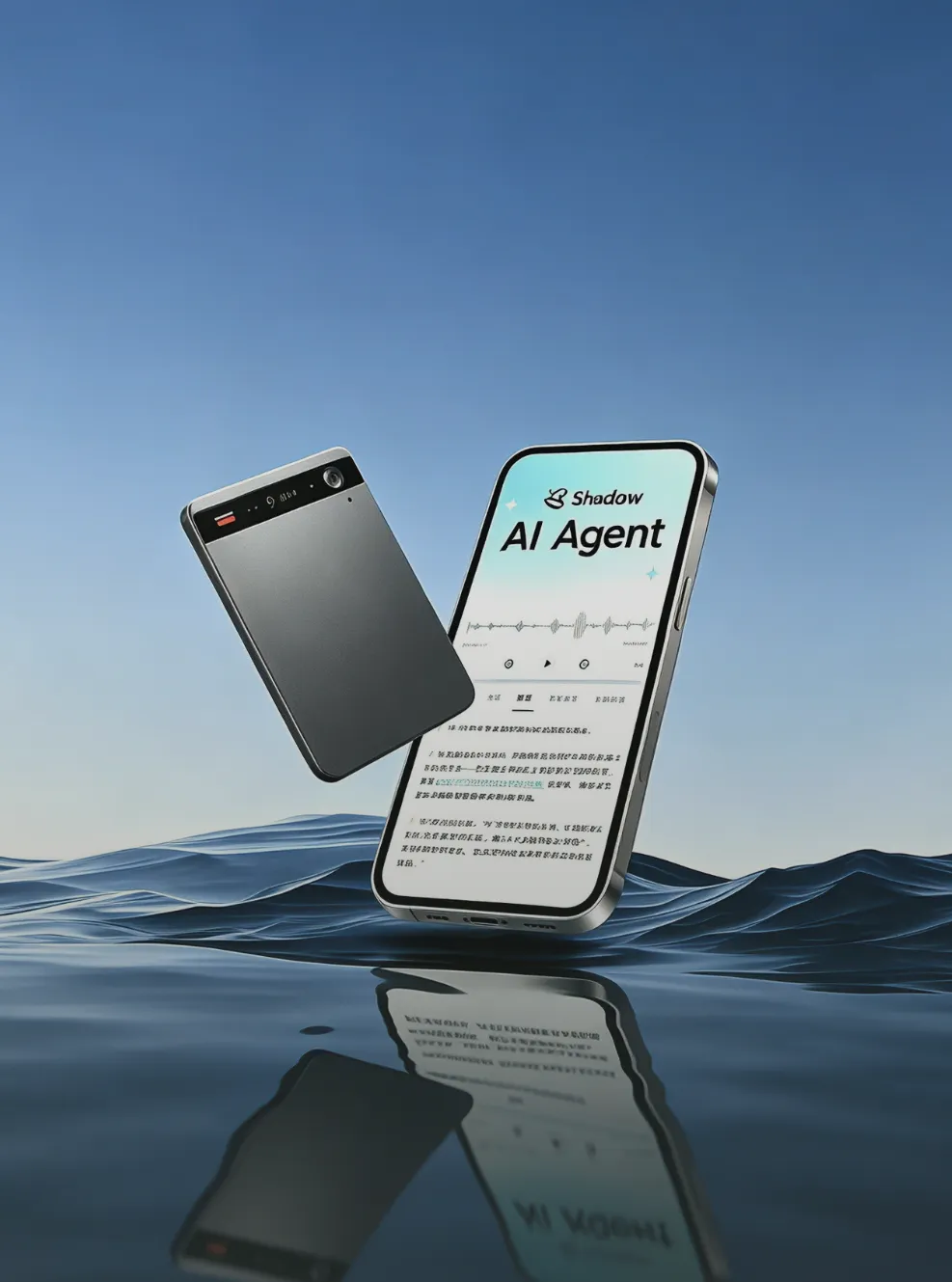

Application
Parameters


  • Model
  • Voltage
    (V)
  • Capacity
    (mAh)
  • Thickness
    (mm)
  • Width
    (mAh)
  • Height
    (mm)
  • Charge Current
    (C)
  • Discharge Current
    (C)
  • Cycle
  • 044865
  • 3.7
  • 4.5
  • 0.45
  • 48.5
  • 65.5
  • 0.5
  • 0.5
  • 500
  • 052036
  • 3.7
  • 12
  • 0.50
  • 20.0
  • 36.0
  • 0.5
  • 0.5
  • 500
  • 064545
  • 3.7
  • 100
  • 0.65
  • 45.5
  • 45.5
  • 0.5
  • 0.5
  • 500
  • 072620
  • 3.7
  • 14
  • 0.75
  • 26.5
  • 20.5
  • 0.5
  • 0.5
  • 500
  • 084545
  • 3.7
  • 100
  • 0.85
  • 45.5
  • 45.5
  • 0.5
  • 0.5
  • 500
  • 091816
  • 3.7
  • 8
  • 1.0
  • 18.5
  • 16.5
  • 0.5
  • 0.5
  • 500
  • 094241
  • 3.7
  • 50
  • 1.0
  • 42.5
  • 41.5
  • 0.5
  • 0.5
  • 500
  • 103025
  • 3.7
  • 30
  • 1.20
  • 30.0
  • 25.0
  • 0.5
  • 0.5
  • 500
  • 104545
  • 3.7
  • 170
  • 1.10
  • 45.5
  • 45.5
  • 0.5
  • 0.5
  • 500
  • 104872
  • 3.7
  • 280
  • 1.05
  • 48.5
  • 72.5
  • 0.5
  • 0.5
  • 500
