Polymer Pouch Cell

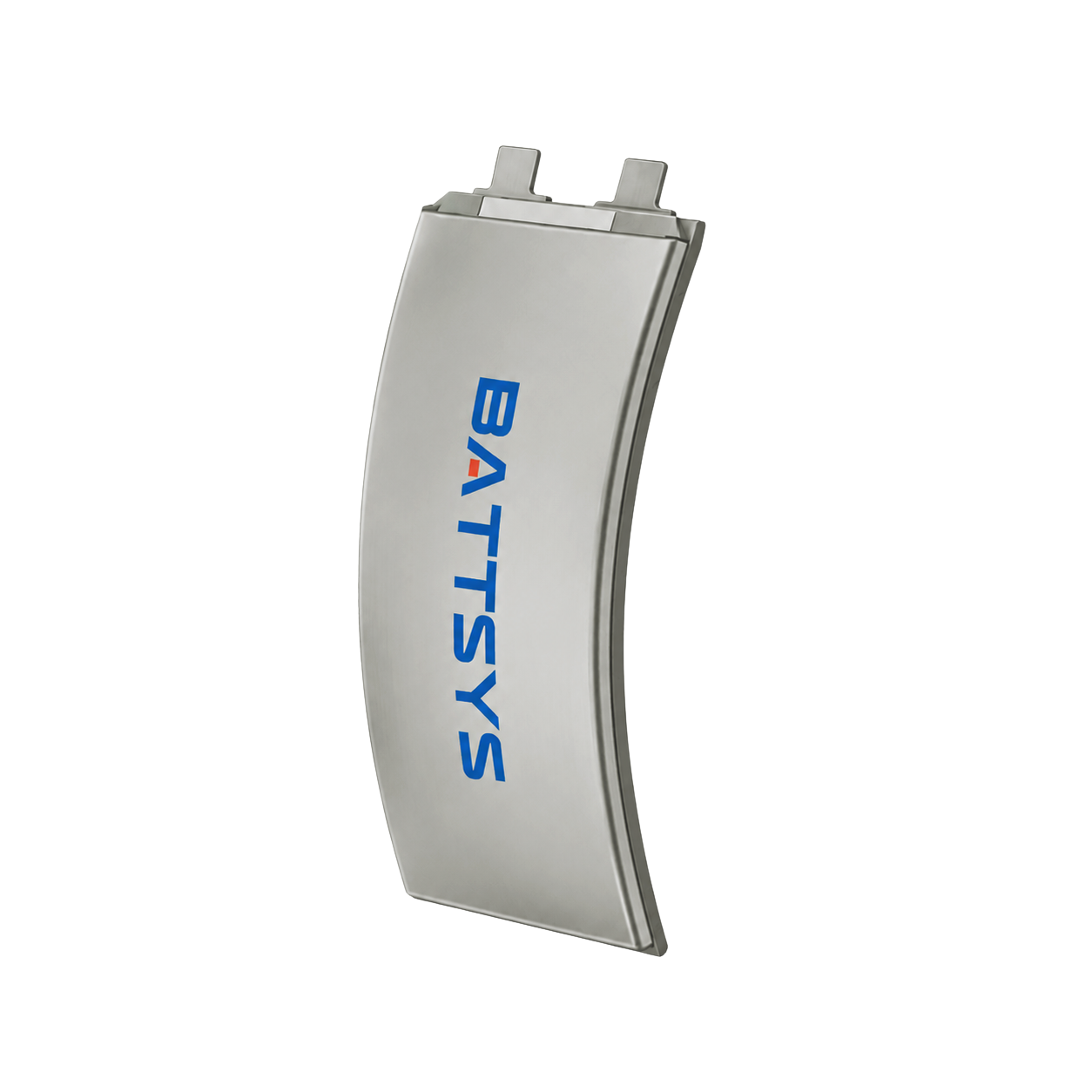

Custom-shaped Cell

Customization: flexible support for curved, polygonal, or other structural custom design.

Lamination Process: maximizing space utilization for higher energy density.

High Energy Density: the application of high-silicon anode materials boost battery energy density, significantly extending device runtime.

Certification
Customized Requirements

Features for Custom-shaped Cell

With strong customization and development capabilities, we can meet the battery integration
requirements of various smart wearable devices, delivering the design and
manufacturing of high energy-density custom-shaped batteries.

Customization

Fexible support for custom design

Lamination Process

Maximized space & higher density

High Energy Density

Silicon-anode for longer runtime

Applications for Custom-shaped Cell

Widely used in Smart Rings, Smart Glasses, AR/VR Devices, Smart Clothing, and other Smart Wearables.

Smar Rings

Smart Glasses

AR/VR Devices

Smart Clothing

Tailored Deep Customization

With strong customization and development capabilities, we can meet the battery integration requirements of various smart wearable devices, delivering the design and manufacturing of high energy density custom shaped batteries.


  • Model
  • Voltage
  • Capacity
  • T*W*L
  • Charge Rate
  • Discharge Rate
  • Cycle Life
  • 160622
  • 3.85V
  • 15.5mAh
  • 1.65*5.8*22.0mm
  • 1C
  • 1C
  • ≥300
  • 220722
  • 3.85V
  • 20mAh
  • 2.2*7.0*22.2mm
  • 1C
  • 1C
  • ≥300
  • 220725
  • 3.85V
  • 25mAh
  • 2.2*7.0*25.2mm
  • 1C
  • 1C
  • ≥300
  • 220728
  • 3.85V
  • 25mAh
  • 2.2*7.0*28.2mm
  • 1C
  • 1C
  • ≥300
  • 220728
  • 3.85V
  • 30mAh
  • 2.2*7.0*28.2mm
  • 1C
  • 1C
  • ≥300
  • 201045
  • 3.87V
  • 80mAh
  • 2.0*10.0*45.0mm
  • 1C
  • 1C
  • ≥200
