Steel Shell Cylindrical Cell

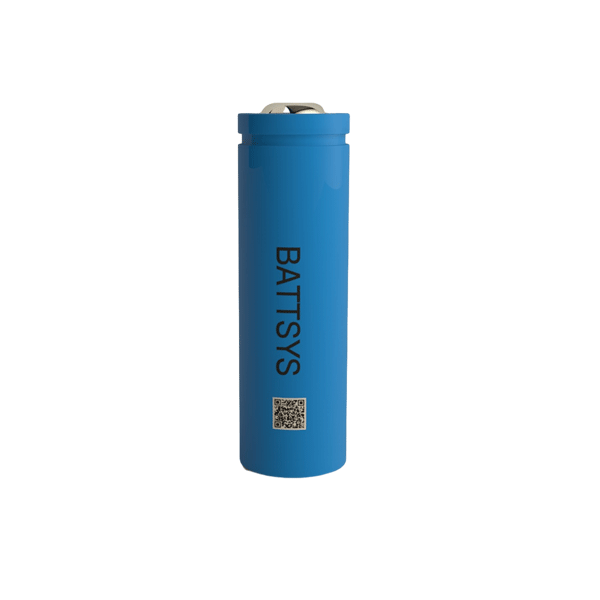

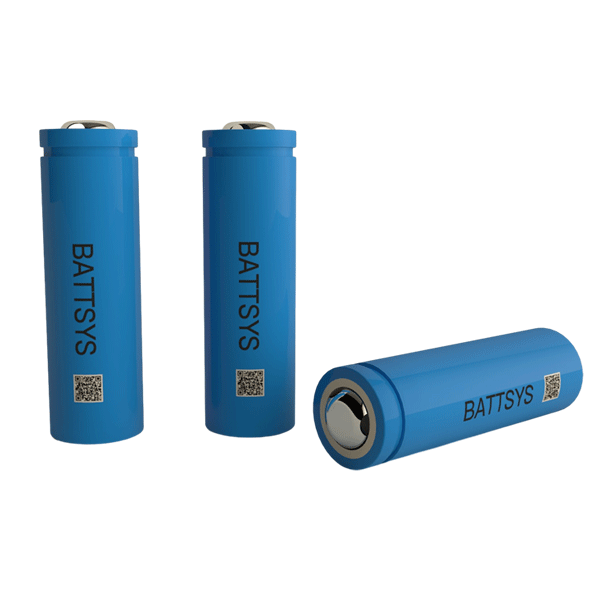

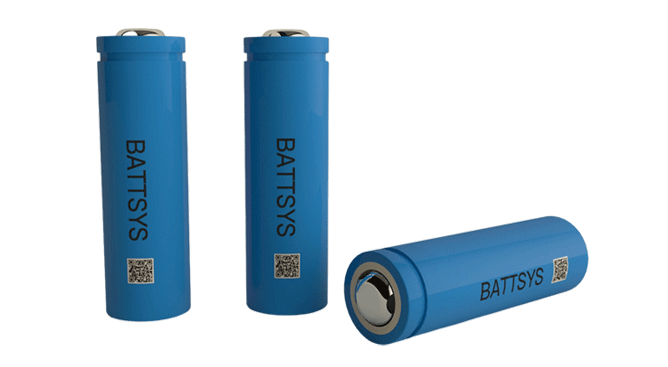

3.7V Steel Shell Cylinder Cell

Excellent rate performance and low internal resistance.

Long cycle life, charge and discharge up to 10,000 times.

Fast charge, intellectual property rights for lithium battery charging technology.

Wide range of temperature adaptation, excellent high and low temperature capacity performance.

Comply with safety test standards for high temperature external short-circuit, over charge, drop, crush, impact, etc.

Certification

Customized Requirements

Features for 3.7V Steel Shell Cylinder Cell

High energy density;Excellent rate performance, low internal resistance;Fast charge;Long cycle life, up to 10,000 charge-discharge cycles.

: High Energy Density

: Fast Charge

: High Rate, ≥30C discharge

: Long Cycle Life, ≥10000 times.

Applications for 3.7V Steel Shell Cylinder Cell

Widely used in power tools, robotic vacuum cleaners, AGVs, start-stop power systems, electric bicycles, communication base stations, portable energy storage solutions, and beyond.

: Power tool

: Sweeping robot

: AGV

: Start-stop Battery

: E-cigarette

: Electric bicycle/ motorcycle

: Telecom ESS

: Portable Power

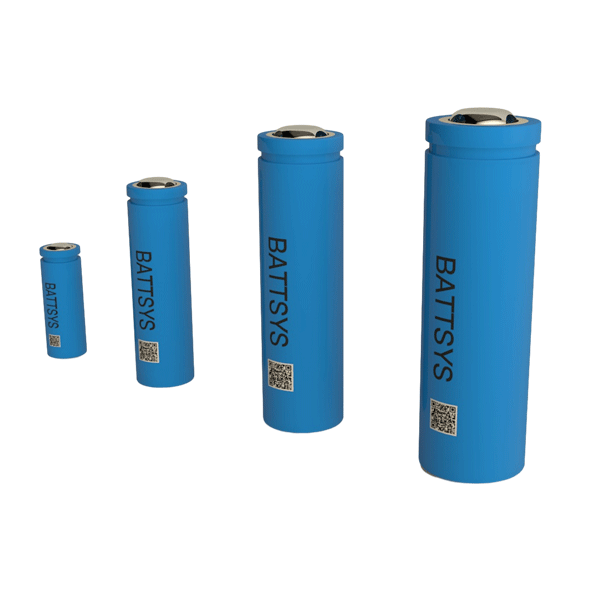

Specification for 3.7V Steel Shell Cylinder Cell

Can be customized, providing diversified solutions for various application scenarios.

Model
Voltage
(V)
0.2C Capacity
(mAh)
1C Capacity
(mAh)
Diameter
(mm)
Height
(mm)
Charge Rate
(C)
Discharge Rate
(C)
Cycle

10290
3.7
≥190
≥180
≤10.5
≤29.5
0.5
0.5~2
500

10310
3.7
≥210
≥200
≤10.5
≤31.5
0.5
0.5~2
500

10360
3.7
≥260
≥250
≤10.5
≤36.5
0.5
0.5~2
500

10380
3.7
≥280
≥270
≤10.5
≤39.0
0.5
0.5~2
500

10370
3.7
≥270
≥260
≤10.5
≤37.2
0.5
0.5~2
500

10390
3.7
≥430
≥420
≤11.6
≤39.9
0.5
0.5~2
500

11500
3.7
≥550
≥540
≤11.6
≤49.0
0.5
0.5~2
500

12360
3.7
≥410
≥400
≤12.3
≤36.8
0.5
0.5~2
500

14200
3.7
≥160
≥150
≤14.2
≤20.0
0.5
0.5~2
500

14220
3.7
≥225
≥215
≤14.4
≤21.8
0.5
0.5~2
500

14300
3.7
≥375
≥365
≤14.4
≤29.6
0.5
0.5~2
500

14300
3.7
≥710
≥700
≤14.2
≤43.3
0.5
0.5~2
500

14460
3.7
≥690
≥680
≤14.4
≤45.8
0.5
0.5~2
500

14470
3.7
≥720
≥710
≤14.2
≤47.0
0.5
0.5~2
500

14480
3.7
≥770
≥730
≤14.2
≤47.8
0.5
0.5~2
500

14490
3.7
≥750
≥740
≤14.2
≤48.5
0.5
0.5~2
500

14490
3.7
≥755
≥745
≤14.2
≤48.8
0.5
0.5~2
500

14490
3.7
≥780
≥770
≤14.4
≤48.5
0.5
0.5~2
500

14490
3.7
≥790
≥780
≤14.4
≤49.1
0.5
0.5~2
500

14500
3.7
≥830
≥820
≤14.5
≤49.7
0.5
0.5~2
500

14500
3.7
≥960
≥950
≤14.5
≤49.7
0.5
0.5~2
500

14650
3.7
≥1060
≥1050
≤14.5
≤64.9
0.5
0.5~2
500

14650
3.7
≥1310
≥1300
≤14.5
≤64.9
0.5
0.5~2
500

18350
3.7
≥1050
≥1000
≤18.5
≤35.5
1.0
1~3
1500

18350
3.7
≥1200
≥1150
≤18.5
≤35.5
1.0
1~3
800

18350
3.7
≥1450
≥1380
≤18.5
≤35.5
0.5
0.5~1
500

18400
3.7
≥1400
≥1350
≤18.5
≤40.5
1.0
1~3
800

18400
3.7
≥1750
≥1650
≤18.5
≤40.5
0.5
0.5~1
500

18450
3.7
≥1650
≥1550
≤18.5
≤45.5
1.0
1~3
800

18450
3.7
≥2000
≥1900
≤18.5
≤45.5
0.5
0.5~1
500

18500
3.7
≥1600
≥1500
≤18.5
≤50.5
1.0
1~3
1500

18500
3.7
≥1850
≥1800
≤18.5
≤50.5
1.0
1~3
800

18500
3.7
≥2000
≥1900
≤18.5
≤50.5
1.0
1~3
800

18500
3.7
≥2400
≥2250
≤18.5
≤50.5
0.5
0.5~1
500

18650
3.7
≥2800
≥2650
≤18.6
≤65.6
1.0
1~3
800

18650
3.7
≥3000
≥2800
≤18.6
≤65.5
1.0
1~3
800

18650
3.7
≥3400
≥3300
≤18.6
≤65.5
0.5
0.5~1
500

21700
3.7
≥5200
≥5000
≤22.0
≤70.8
0.5
0.5~1
500
