Home > Product > Aerial Working Platform Battery > 12V Aerial Working Platform Lithium Battery

Aerial Working Platform Battery

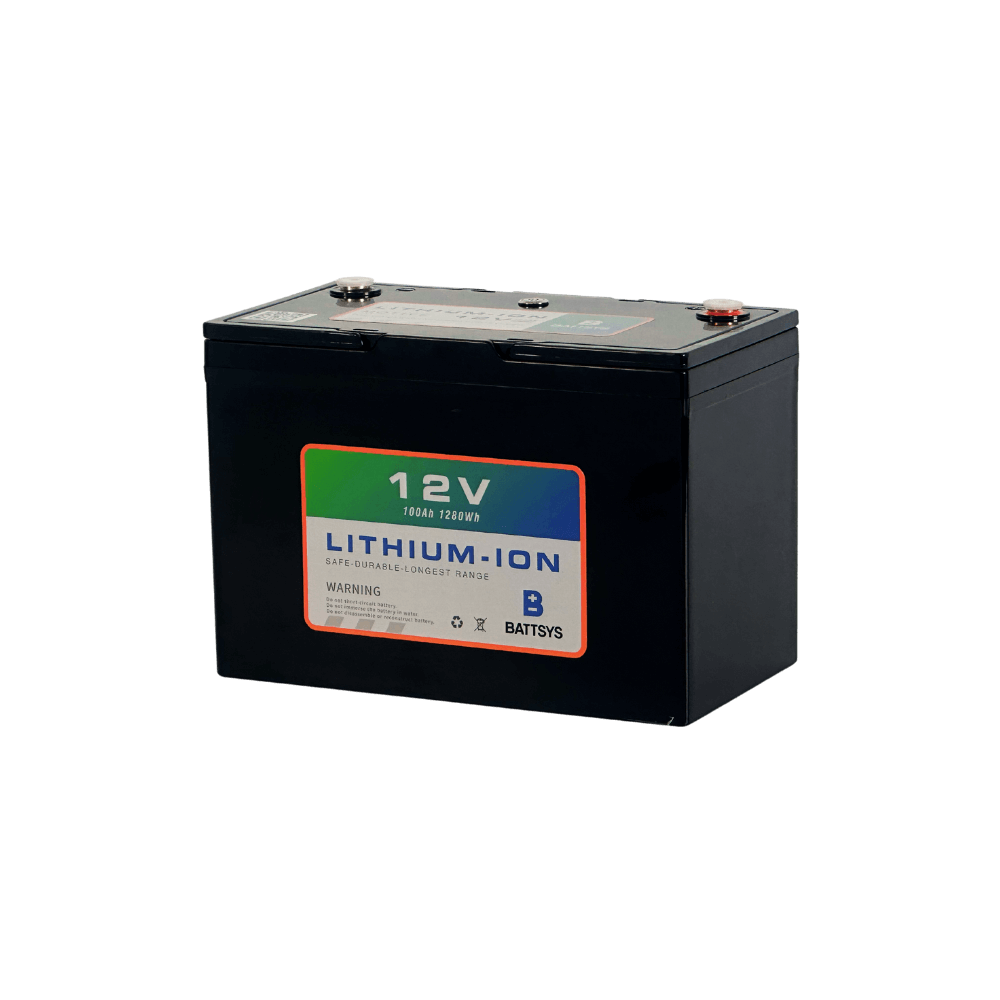

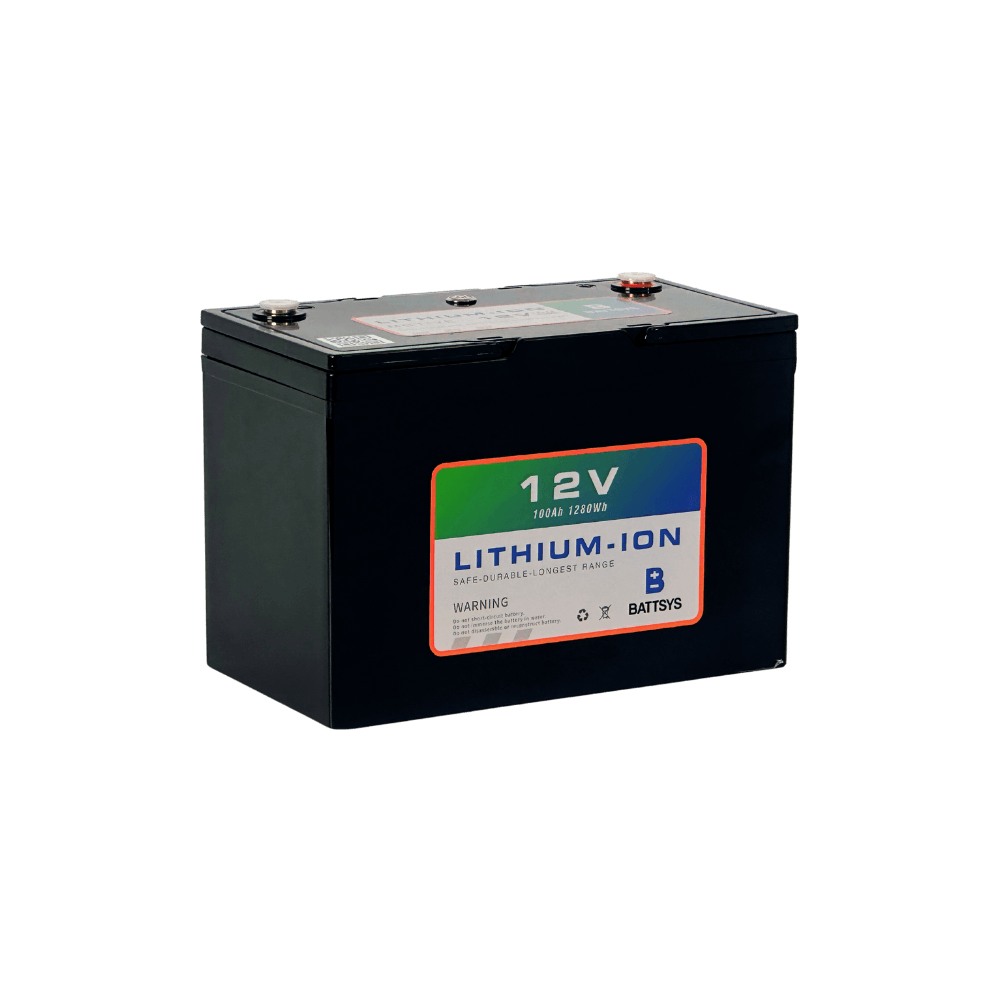

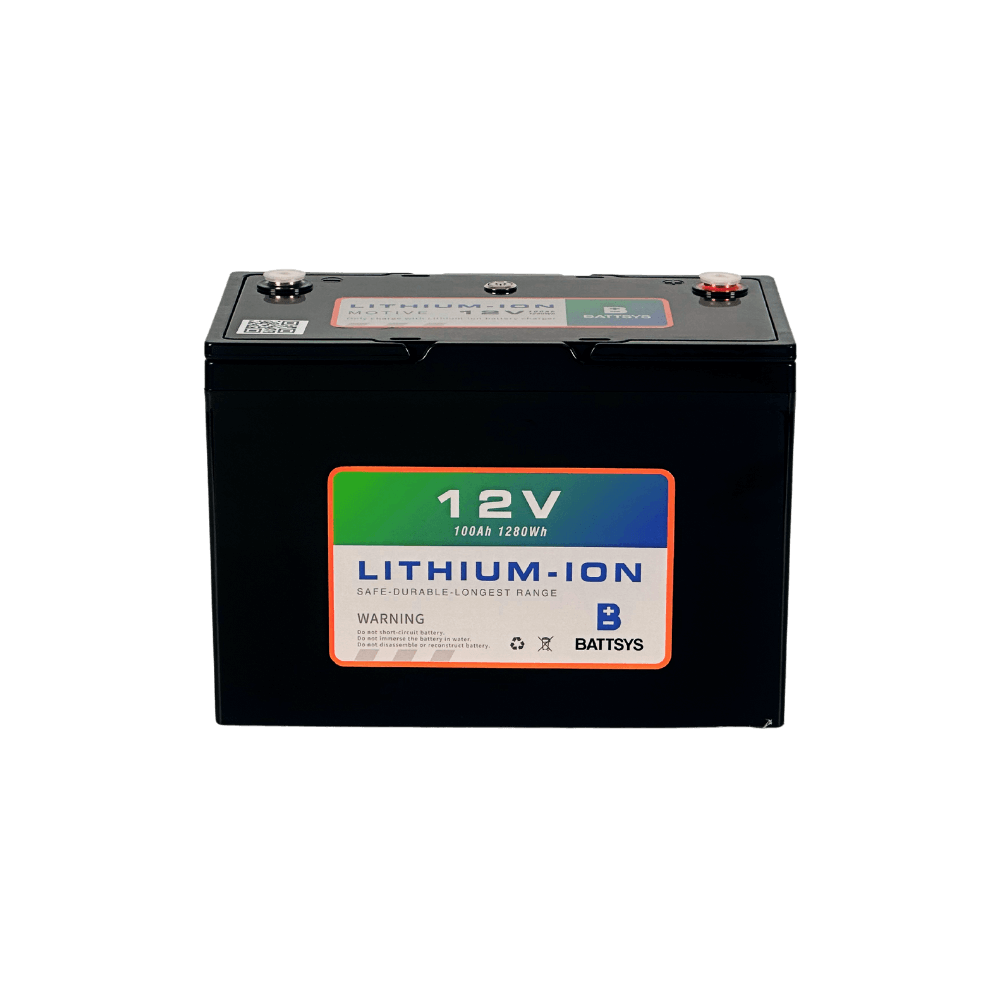

12V Aerial Working Platform Lithium Battery

Nominal Voltage
12V(12.8V)
Nominal Capacity
102Ah
Energy
1.31kWh
Cycle Life
3500+cycles
Warranty
5years
Wide temperature
-20℃~65℃
Casing Material
ABS
IP Rating
IP67

Certification

Features for 12V Aerial Working Platform Lithium Battery

Lithium batteries replace lead-acid, using automotive-grade long-life environmentally friendly LiFePo4 batteries, equipped with high-performance BMS to manage battery charge and discharge.

: 80% charge in 30min

: 3500+ cycle life

: 5-year warranty

: 10 years service life

: Zero maintenance

: Heating function

: Wide temperature range: -20℃~65℃

: Bluetooth connection

Extending functions

Light Weight

High utilization structural design; weight/volume reduced by 30%~50%.

Fast charging

80% charge in 30 minutes, 20% charge in 5 minutes.

Durable

Lifespan up to 10 years, 3500+ cycles; zero maintenance, 5-year warranty.

Smart monitoring

Smart BMS, Bluetooth connection, APP monitoring battery status.

Applications for Lead-acid to Lithium Battery

Widely deployed in golf carts, floor cleaner machines, aerial work platforms, forklifts, and marines, among other applications.

: Golf Cart

: Floor Cleaner Machine

: Aerial Working Platform

: Forklift Truck

: Marine

Specification for Aerial Working Platform Lithium Battery

Can be customized, providing diversified solutions for various application scenarios.

Model
Nominal Voltage
Nominal Capacity
Energy
L*W*H
Weight
Continuous Discharge Current
Peak Discharge Current@30s
Casing Material
IP Rating

12V102Ah
12.8V
102Ah
1.31 kWh
12.1x6.8x8.7 inch (308x172x220 mm)
22.9 lbs(10.4 kg)
100A
200A
ABS
IP67

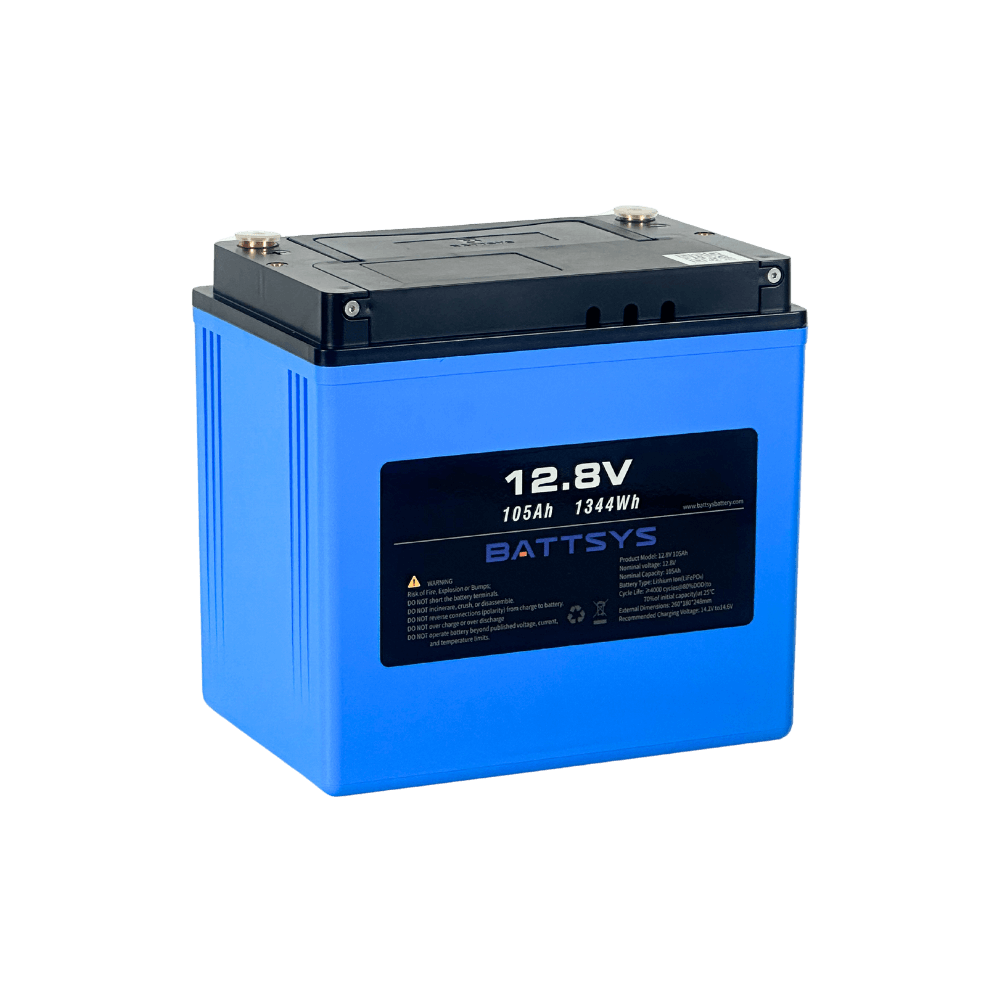

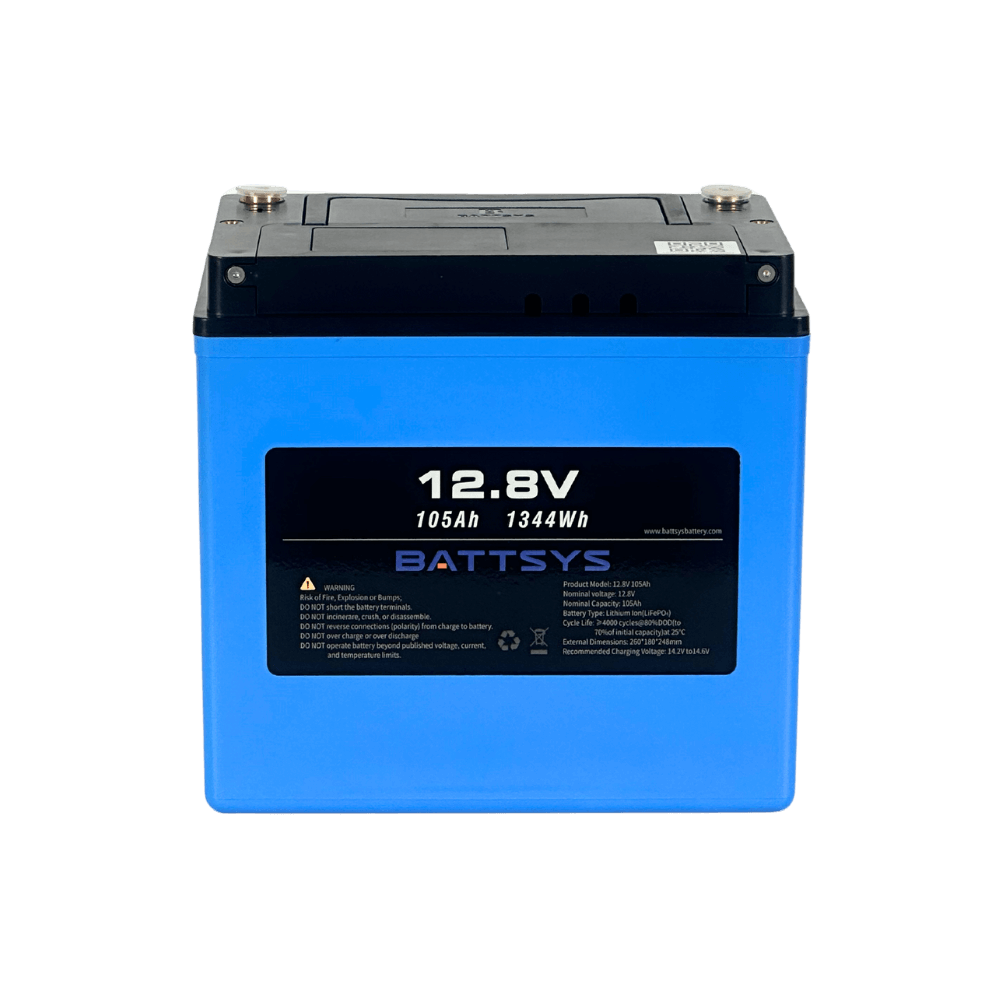

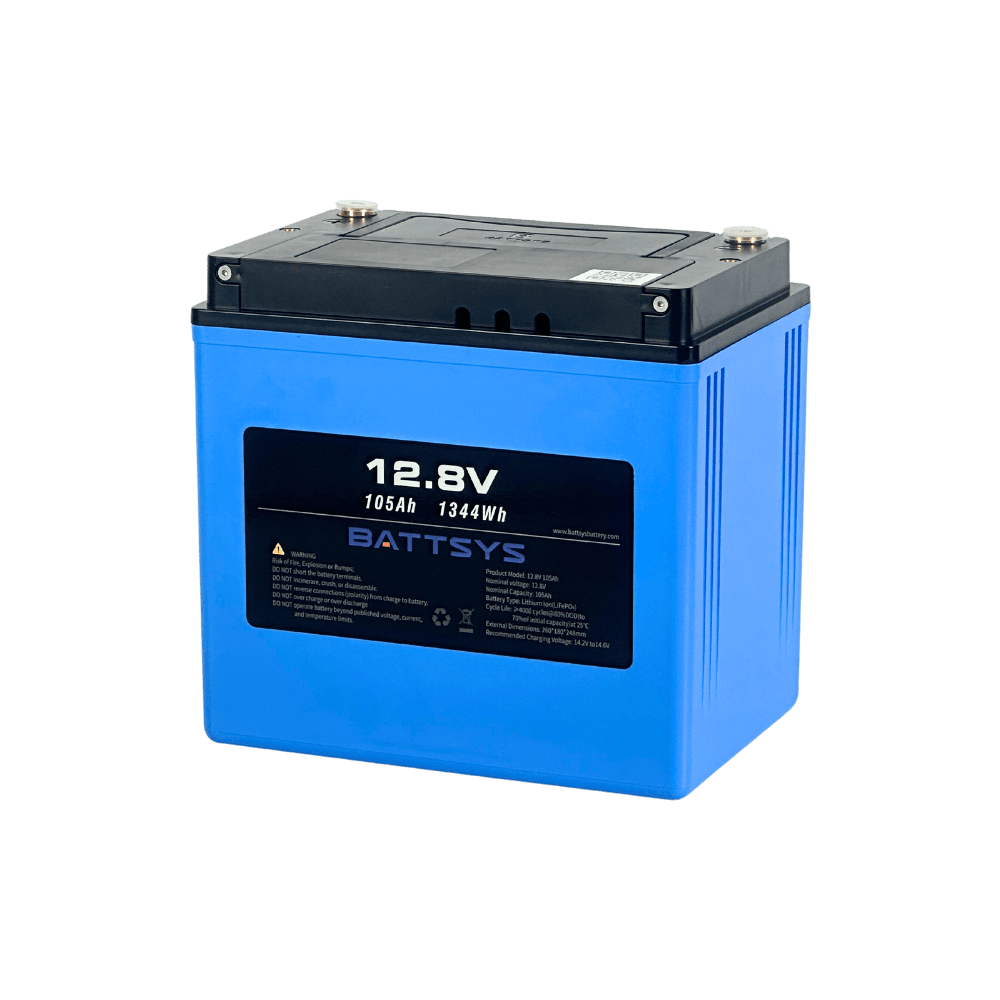

12V105Ah
12.8V
105Ah
1.34 kWh
10.2x7.1x9.6 inch (260x180x245 mm)
23.8 lbs(10.8 Kg)
100A
200A
ABS
IP67

12V210Ah
12.8V
210Ah
2.69 kWh
13.6x7.5x9.6 inch (345x190x245 mm)
47.4 lbs(21.5 Kg)
100A
200A
ABS
IP67

12V210Ah
12.8V
210Ah
2.69 kWh
13.6x7.5x9.6 inch (345x190x245 mm)
47.4 lbs(21.5 Kg)
200A
400A
ABS
IP67

24V67Ah
25.6V
67Ah
1.72 kWh
20.9x16.9x10.2 inch (260x180x245 mm)
30.2 lbs(13.7 Kg)
70A
140A
ABS
IP67

24V105Ah
25.6V
105Ah
2.69 kWh
13.6x7.5x9.6 inch (345x190x245 mm)
47.4 lbs(21.5 Kg)
100A
200A
ABS
IP67

24V210Ah
25.6V
210Ah
5.38 kWh
19.3x13.8x10.2 inch (490x350x260 mm)
110.2 lbs(50.0 Kg)
150A
300A
Steel
IP65

36V40Ah
38.4V
40Ah
1.54 kWh
10.2x7.1x9.6 inch (260x180x245 mm)
27.1 lbs(12.3 Kg)
40A
80A
ABS
IP67

48V30Ah
51.2V
30Ah
1.54 kWh
10.2x7.1x9.6 inch (260x180x245 mm)
27.1 lbs(12.3 Kg)
30A
60A
ABS
IP67

48V105Ah
51.2V
105Ah
5.38 kWh
28.1x10.8x10.4 inch (715x275x265 mm)
99.2 lbs(45.0 Kg)
100A
200A
Steel
IP65

48V210Ah
51.2V
210Ah
10.75 kWh
29.1x16.9x10.2 inch (740x430x260 mm)
238.1 lbs(108.0 Kg)
150A
300A
Steel
IP65

48V304Ah
51.2V
304Ah
15.57 kWh
28.3x17.7x10.4 inch (720x450x265 mm)
297.6 lbs(135.0 Kg)
250A
500A
Steel
IP65
