 18650 lithium battery
  •  18650 lithium battery
  • cylindrical cell sizes
  • pouch cell dimensions

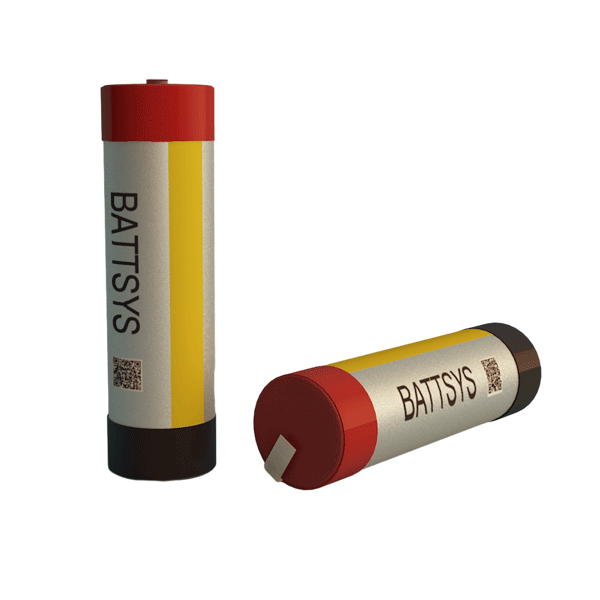

Pouch Cylindrical Cell

Pouch Cylindrical Cell

Excellent safety performance.

Wide voltage coverage range, 4.2~4.5V series.

Ultra-high energy density, discharge rate, and power.

Fast charge,intellectual property rights for lithium battery charging technology.

Comply with safety test standards for high temperature external short-circuit, over charge, drop, crush, impact, etc.

Certification
Customized Requirements

Features for Pouch Cylindrical Cell

Our Pouch Cylindrical Cell: characterized by high safety standards, a wide voltage coverage range of 4.2~4.5V series, and exceptionally high energy density, discharge rate, and power capabilities.

High Safety
High Energy Density
High Rate Discharge

Applications for Pouch Cylindrical Cell

Widely employed in HNB (Heat-Not-Burn) heating appliances, electronic vaporizers, electric toothbrushes, stylus pens, voice recorders, and beauty devices, among others.

HNB Appliances

Vaping Device

Power tools

Medical Devices and Emerging Digital

Specification for Pouch Cylindrical Cell

Can be customized, providing diversified solutions for various application scenarios.

* With in 3000mAh, 4.2V/4.35V/4.4V/4.45V, each size can be customized.

  • Model
  • Voltage
    (V)
  • 0.5C Capacity
    (mAh)
  • 1C Capacity
    (mAh)
  • Diameter
    (mm)
  • Height
    (mm)
  • Charge Rate
    (C)
  • Fast Charge Time
    (min)
  • Pulse Discharge Current (A)
  • Cycle
  • 11330
  • 3.7
  • ≥300
  • ≥280
  • 11.5
  • 33.5
  • 2
  • 3~10
  • 3~5
  • 500
  • 13300
  • 3.7
  • ≥450
  • ≥450
  • 13.5
  • 30.5
  • 2
  • 10~20
  • 3~5
  • 500
  • 14500
  • 3.7
  • ≥980
  • ≥930
  • 14.5
  • 50.5
  • 1~1.5
  • 20~30
  • 5~10
  • 500
  • 16400
  • 3.7
  • ≥950
  • ≥900
  • 16.5
  • 40.5
  • 1~1.5
  • 20~30
  • 3~5
  • 500
  • 16600
  • 3.7
  • ≥1600
  • ≥1500
  • 16.5
  • 60.5
  • 2
  • 30~45
  • 5~10
  • 500
  • 16650
  • 3.7
  • ≥1800
  • ≥1700
  • 16.5
  • 65.5
  • 2
  • 30~45
  • 3~5
  • 500
  • 18500
  • 3.7
  • ≥1600
  • ≥1500
  • 18.5
  • 50.5
  • 2
  • 30~45
  • 10~15
  • 500
  • 18650
  • 3.7
  • ≥2250
  • ≥2150
  • 18.5
  • 65.5
  • 2~2.5
  • 30~45
  • 5~10
  • 500
